Motor Overview:

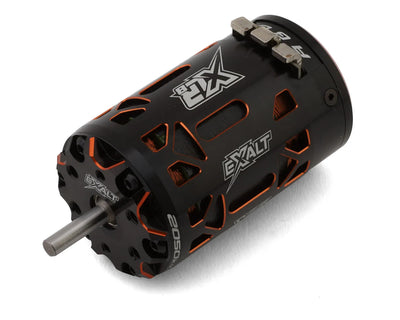

Team Exalt XLR8 1/8 Sensored Brushless Short Can Buggy Motor. Designed from the ground up to feed the demand for short 69mm can-size motors that don't lack power, speed, torque, or durability in 1/8 buggy racing! This XLR8 motor features high-strength and heat-resistant staggered magnet placed rotor offering a low drag effect with incredible torque and power, high purity copper windings with advanced hall sensing system design separating the rotor magnet from the magnet pickup and a rebuildable design with a replaceable sensor board!

To ensure peak performance even in the most demanding conditions and that cooling would not be an issue, Team Exalt designed the case with a 2mm thick aluminum wall and implemented ventilation holes that let the air in and keep the debris out for the ultimate heat dissipation and motor protection!

Features:

Staggered magnet placed rotor offering a low drag effect with incredible torque and power
Adjustable timing from 0-40 degrees (CCW/CW)
Sensored and Sensorless compatible
Rebuildable design with replaceable sensor board
High purity copper windings
Top-quality alloy steel output shaft
High-strength and heat resistant magnet formula
Advanced hall sensing system design separating the rotor magnet from the magnet pickup
Roar Approved!

Specifications:

Type: Sensored Brushless
kV Rating: 2050kV
Input Voltage: 2-4S (7.4-14.8V) LiPo
Poles: 4
Timing: Adjustable 0-40 degrees (CCW/CW)
Diameter: 41.8mm (1.645in)
Length: 69mm 2.71in
Shaft Diameter: 5mm (0.19in)
Shaft Length: 17.7mm (0.696in)
Weight: 335g (11.8oz)
Application: 1/8 Buggy

Includes:

(1) XLR8 1/8 Sensored Brushless Short Can Buggy Motor (2050kV)
(1) Sensor Wire
