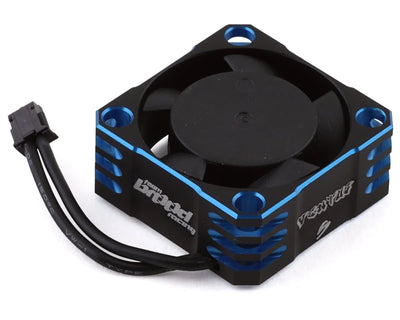

The Team Brood Ventus S Aluminum 25mm High Speed Cooling Fan is a high quality fan option developed for high performance applications. The Ventus S features a heavily machined aluminum casing that will help to protect the fan blades in the event of a crash, and is lighter than a typical 30mm fan making it perfect for a weight conscious enthusiast.

The fan is compatible with 2S HV LiPo systems (8.75V max), has dual ball bearings, and is pre-wired with a 2 pin connector that can be plugged directly into the receiver or another source of power. This fan can be mounted with double side tape, and is an excellent choice for a variety of applications ranging from 1/12 to 1/8 scale.

NOTE: For optimal performance, the fan should be installed at least 5mm away from the motor to prevent magnet interference and to allow sufficient air flow.

Features:

25mm aluminum cooling fan
Aluminum casing helps dissipate heat and protect the fan blades
Compatible with 2S HV LiPo systems (8.75V max)
Anodized black with red chamfered edges
Perfect for 1/12, 1/10 and 1/8 applications
2 pin connector for easy installation
30 Day Warranty against defects

Specifications:

Dimensions: 25x25x10mm

Material: Aluminum & Plastic

Bearing: Dual Ball Bearing

Operating Voltage: 5V - 8.4V
Max RPM: 32,000
Current: 0.52A @7.4V

Connector: JST 2-Pin

Fan Applications: 1/10 Scale, 1/12 Scale, 1/8 Scale
