VITAVON CNC Alu7075 150kg V2 15T Brushless Digtal Servo For 1/5 Scale Vehicles - Vitavon - 5T00087

Product Name:VITAVON CNC Alu7075 150kg V2 15T Brushless Digtal Servo For 1/5 Scale Vehicles

Brand:VITAVON

Color:Silver Black Gold Red Blue Purple

Compared with our G1 servo, the G2 (V2 version) comes with several significant upgrades, as detailed below:

1.Voltage Range Upgrade: The V2 version supports a wider voltage range of 7.4V – 16.8V, replacing the G1’s 7.4V – 12.4V, which enables faster operating speed.

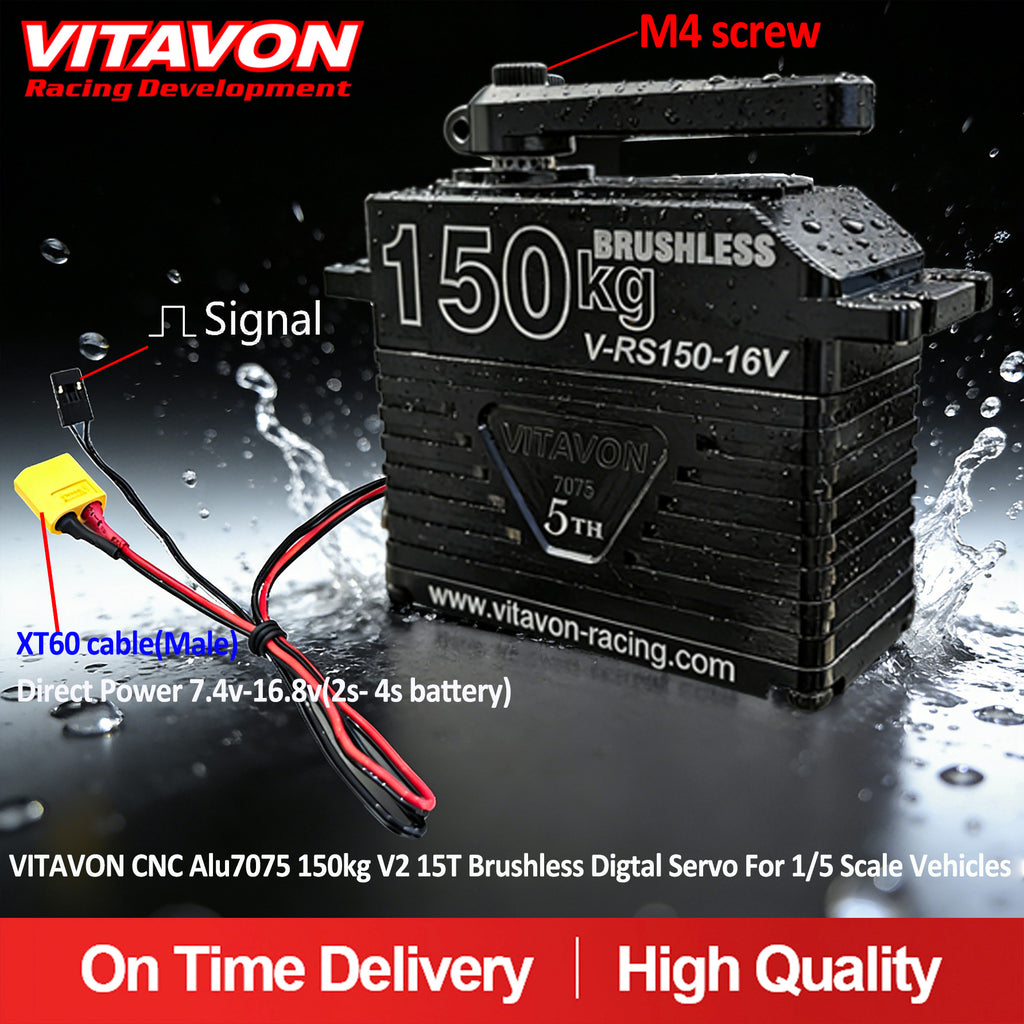

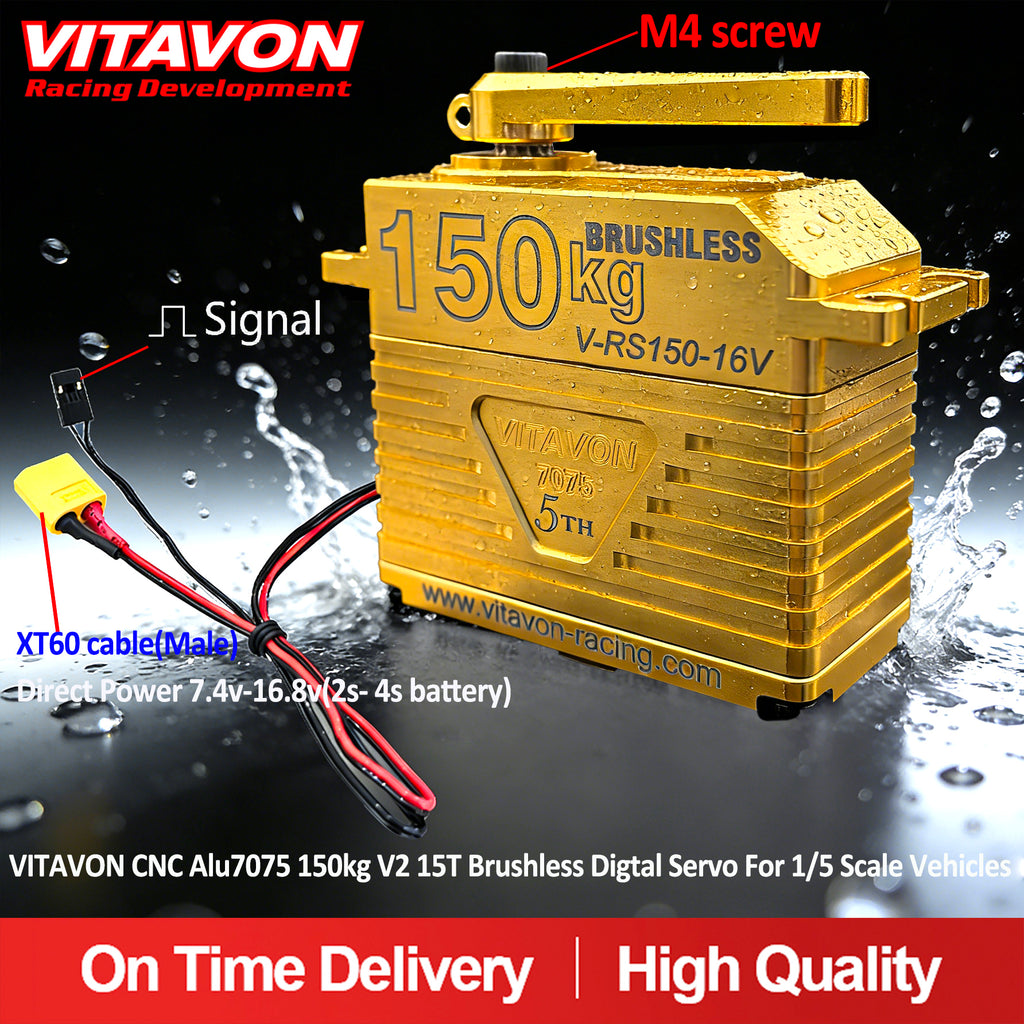

2.Power Supply Requirement: A separate 7.4V-16.8V 4S battery is required (instead of the 3S battery for G1) to deliver more power. This is particularly important because if the servo draws power directly from the ESC, voltage drops may occur, leading to unstable truck operation.

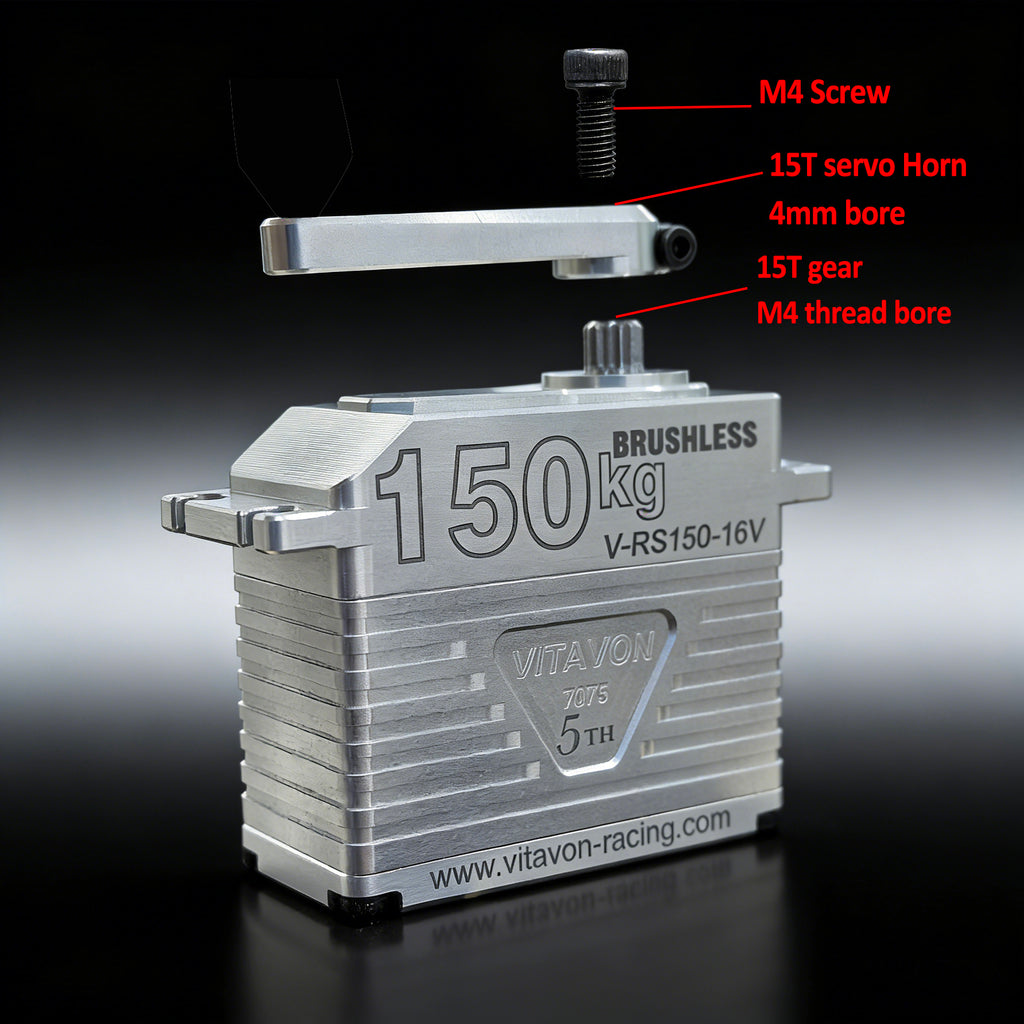

3.Mounting Hole Enhancement: M4 mounting holes are adopted instead of the G1’s M3 holes. This allows the use of M4 screws to secure the servo horn, effectively preventing the screws from loosening easily.

4.Housing Material Upgrade: The servo housing is made of 7075 aluminum alloy, replacing the 6061 aluminum alloy used in the G1 servo for improved durability and strength.

Specifications:

Scale: 1:5

Voltage Range:7.4V – 16.8V

Motor Type: Brushless

Output Shaft: 15 Tooth

Gears: Stainless steel

Gear Ratio:154

Weight: 270g

Dimensions: 2.56×1.18×1.69in (65x30x43mm)

Height (Base to Mount): 43mm

Voltage                   Torque                               Speed                               Locked rotor current
7.4v                        105 kg-cm                0.19 sec/60 degree                      6.6A
8.4V                       115 kg-cm                 0.17sec/60degree                        7.4A
12V                        135kg-cm                 0.12sec/60degree                        9.5A

16.8V                      155kg-cm                 0.09sec/60degree                        12A

Includes:

Brushless Servo+15T servo horn
