Product Name : VITAVON High-ductility Stainless Steel Exhaust Pipe For Losi 5ive-T 1.0 2.0
Brand : VITAVON
Color : Silver

–Without Silencer version:
Applicable vehicle model: LOSI 5IVE-T 1.0 2.0
Applicable engine displacement: 28-38cc
Introduction to Expansion Exhaust Pipe:
The exhaust interface is designed with a heat-conducting fixed seat and an integrated exhaust pipe. The expansion chamber is made of high-ductility stainless steel with a thickness of 0.6mm, which enables the expansion chamber to achieve the true functions of expansion and contraction, improving the smoothness of pressure return, making the engine easier to start, responding more quickly and reducing the working temperature of the cylinder.
For high-performance design, this model eliminates the muffler, reducing the overall weight to 613g to alleviate power loss during vehicle transmission and lower the engine load.
Please pay attention to the pressure valve inside the exhaust port at the tail of the exhaust pipe. The applicable displacement of the diameter we set when shipping is 28 to 34cc. If your engine is above 34cc, you should pay attention to the working temperature of the cylinder. If the working temperature of the cylinder frequently exceeds 170 degrees, it indicates that the back pressure of the exhaust pipe is too high. At this point, please increase the diameter of the pressure adjustment valve in the exhaust tail by yourself. Each increase should be limited to 0.1mm until the working temperature of the engine cylinder drops to normal.
With Silencer version:
Applicable vehicle model: LOSI 5IVE-T 1.0 2.0
Applicable engine displacement: 28-38cc
Introduction to Expansion Exhaust Pipe with silencer :
The exhaust interface is designed with a heat-conducting fixed seat and an integrated exhaust pipe. The expansion chamber is made of high-ductility stainless steel with a thickness of 0.6mm, which enables the expansion chamber to achieve the true functions of expansion and contraction, improving the smoothness of pressure return, making the engine easier to start, responding more quickly and reducing the working temperature of the cylinder.
The silencer is made of carbon fiber and aluminum alloy, with an overall weight of only 640g to reduce power loss during vehicle transmission and lower the engine load.
Please pay attention to the pressure valve inside the exhaust port at the tail of the exhaust pipe. The applicable displacement of the diameter we set when shipping is 28 to 34cc. If your engine is above 34cc, you should pay attention to the working temperature of the cylinder. If the working temperature of the cylinder frequently exceeds 170 degrees, it indicates that the back pressure of the exhaust pipe is too high. At this point, please increase the diameter of the pressure adjustment valve in the exhaust tail by yourself. Each increase should be limited to 0.1mm until the working temperature of the engine cylinder drops to normal.

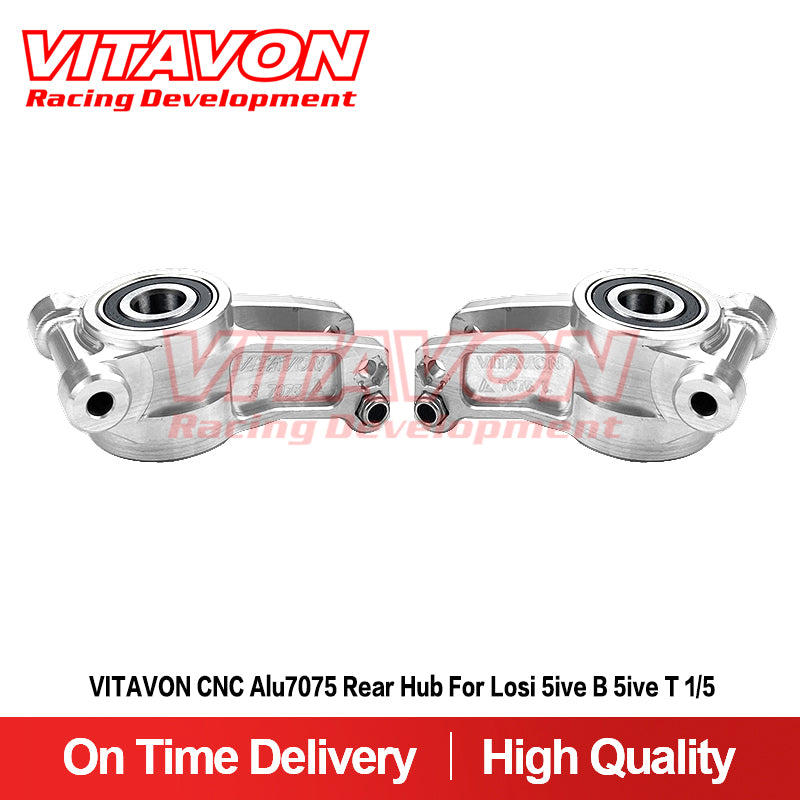

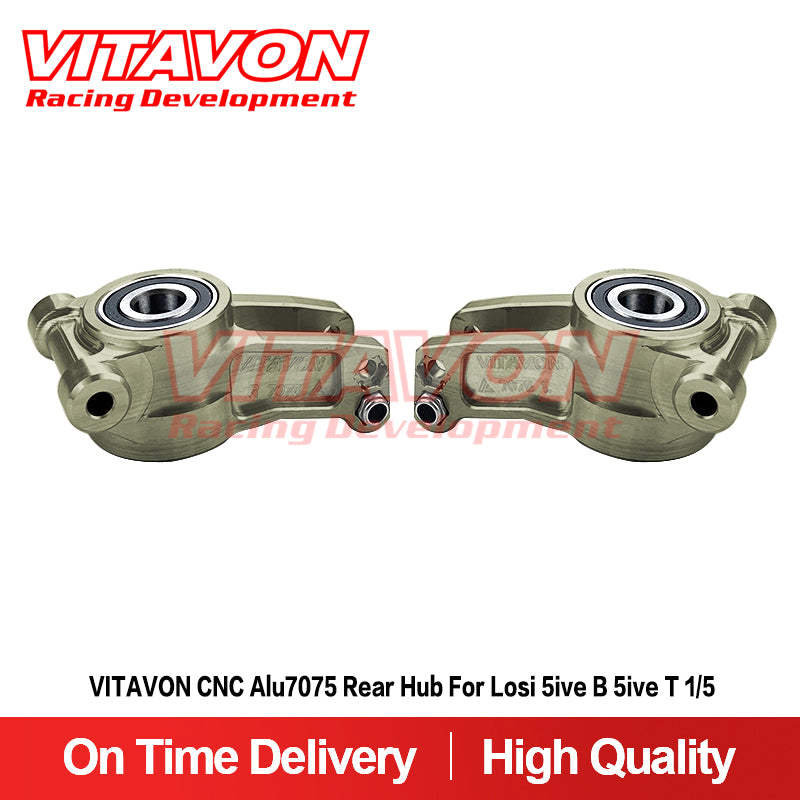

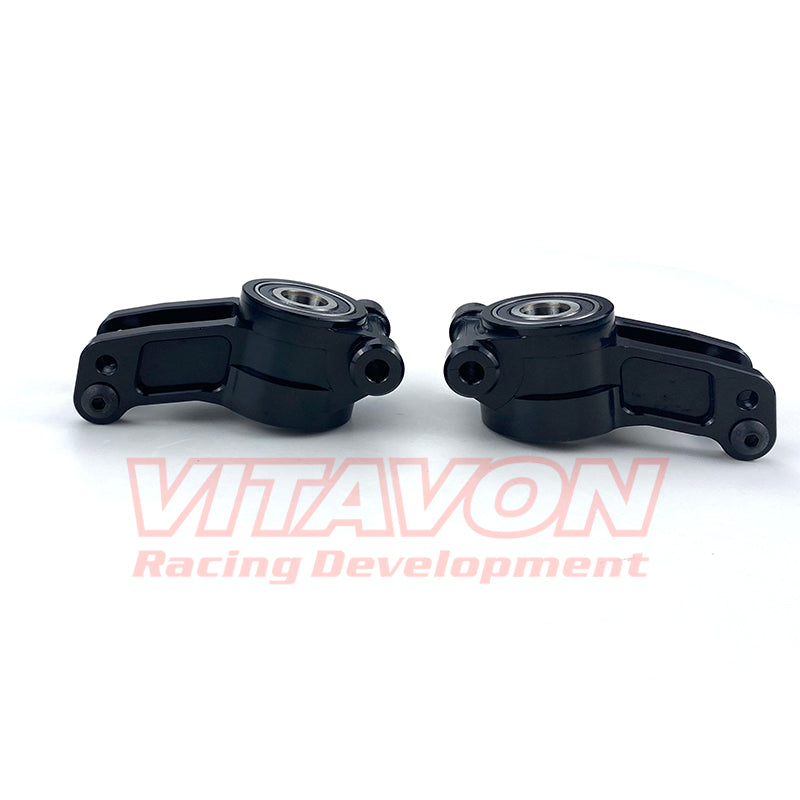

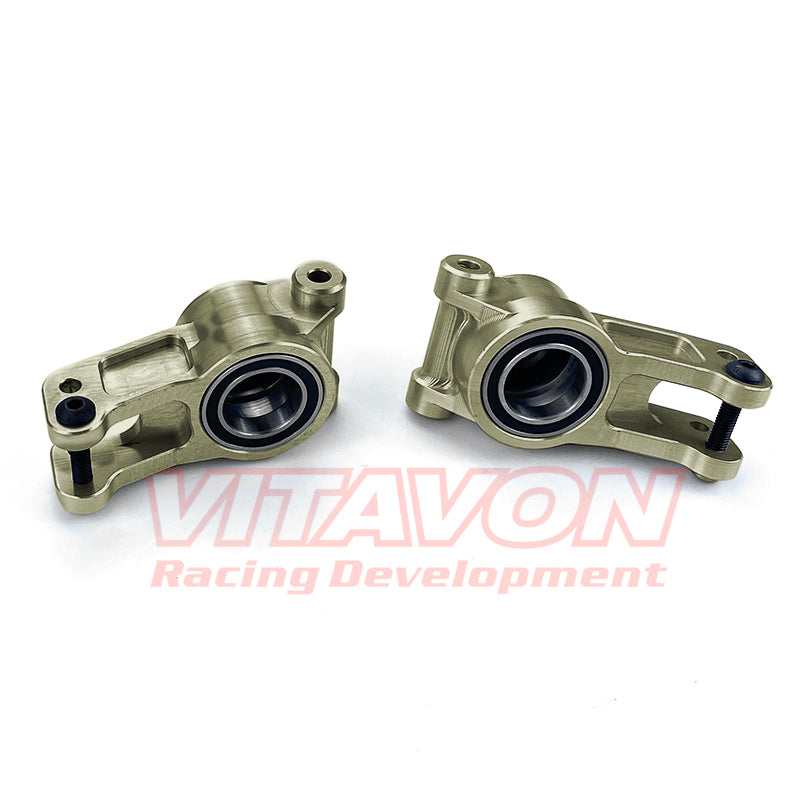

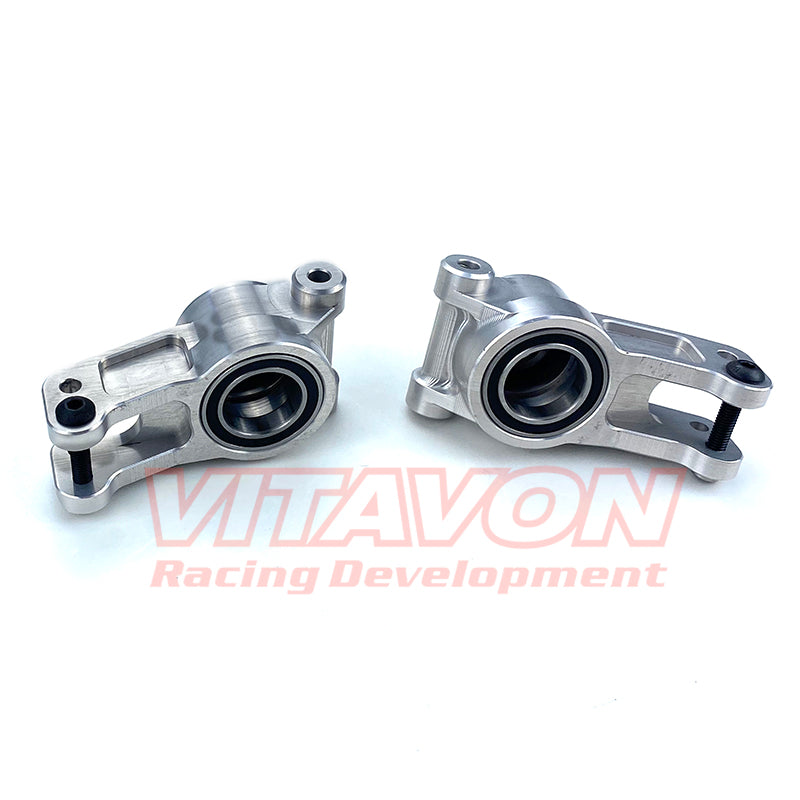

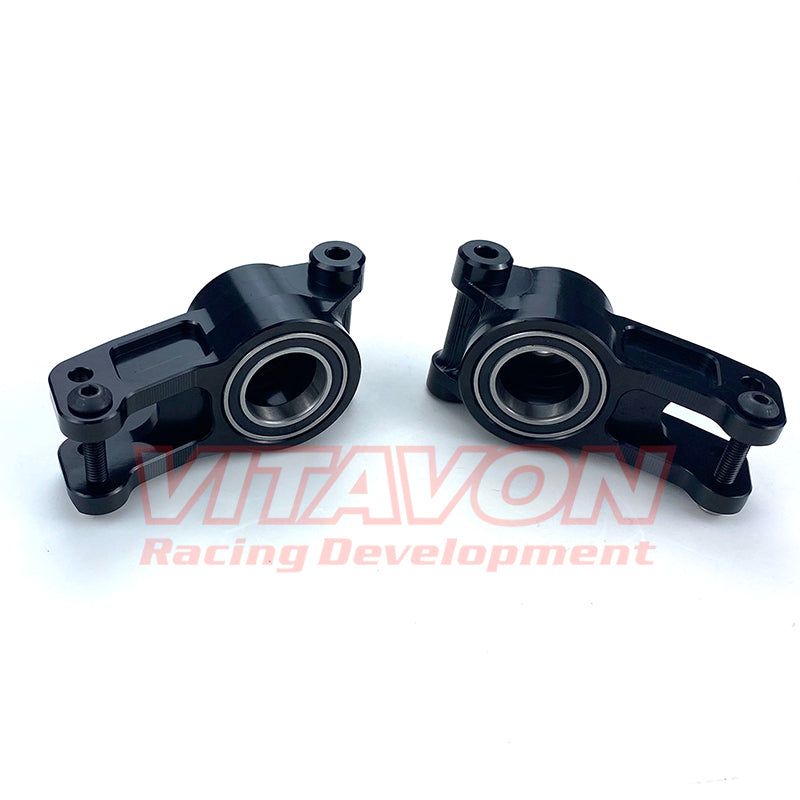

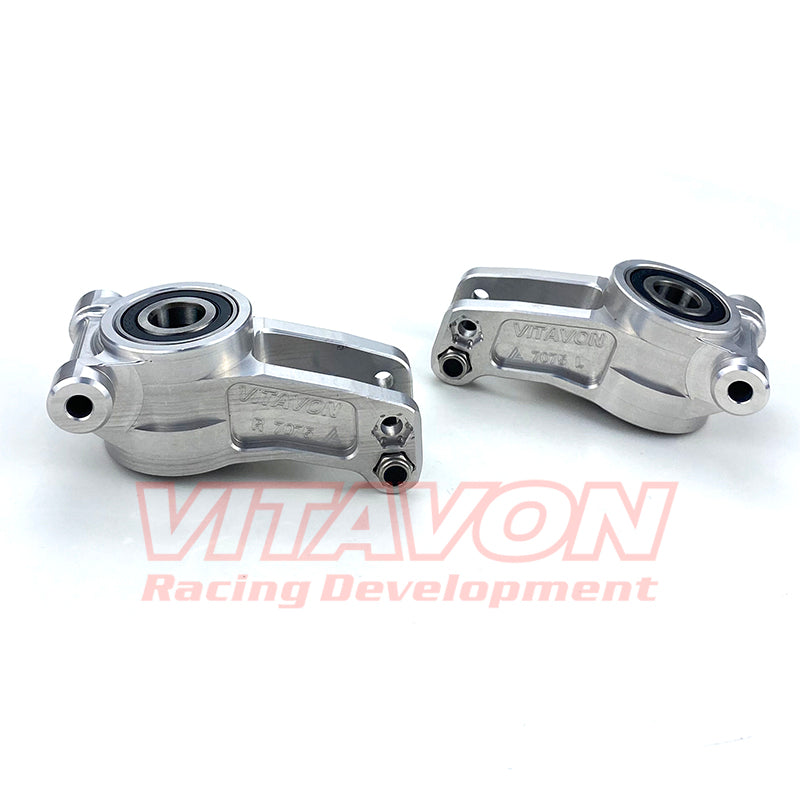

VITAVON Losi 1/5 5B 5T CNC alu7075 Rear Hub - Vitavon - 5B00004
